ADA  ULTRALiner 360 4V with 1x360° horizontal  4x vertical lines
ULTRALiner 360 4V with 1x360° horizontal 4x vertical lines 349,- €449,00

ULTRALiner 360 4V with 1x360° horizontal 4x vertical lines

€449,00 €349,00
Out of stock
Article number: A00540
EAN: 4627151050201
  • 2 years Warranty
  • Working days orderd before 17:00 hours same day send
  • Whatsapp your questions to +31-655117271
  • send a email to [email protected]
  • 3-4 weeks

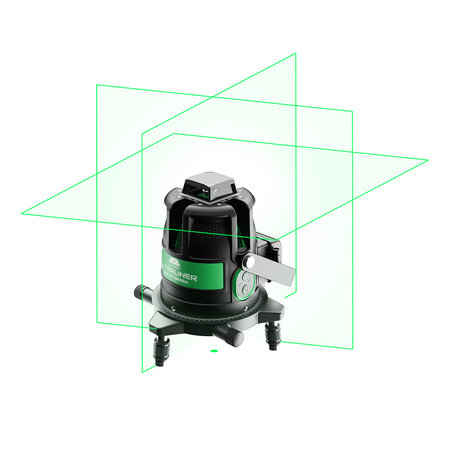

Laser level ULTRALiner 360 4V  – is a laser level for professional usage in the construction and repair. Special emitter projects 360° horizontal beam. Four emitters project additionally perpendicular vertical planes. It is ideal instrument during construction and repair works when paving tile laying or other coating, wallpapering and so on.

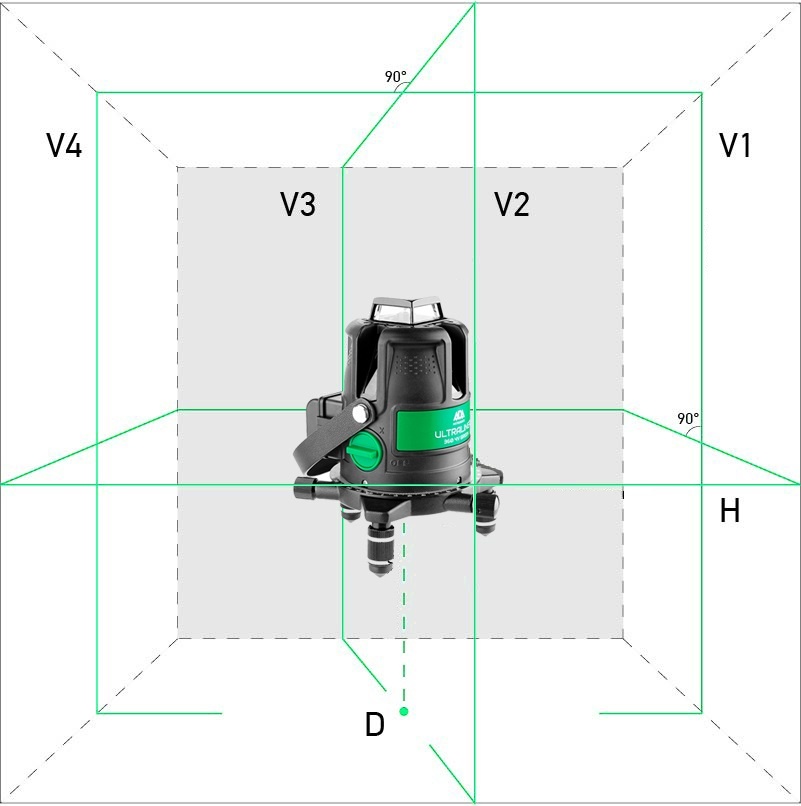

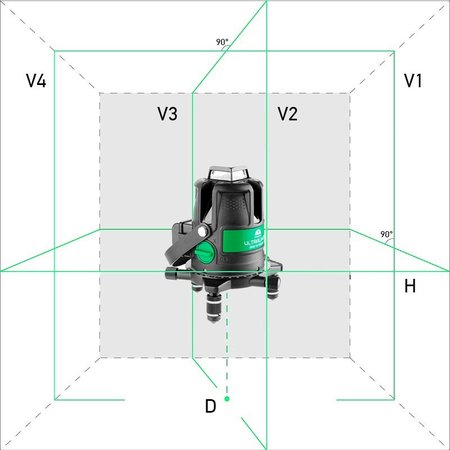

360° horizontal beam. Laser level projects 360° horizontal line. There is no need to rotate the instrument when making horizontal marking. Horizontal beam will be along the perimeter. There are four laser crosses when switching on vertical lines. It is possible to switch off laser lines one-by-one. Just select the line that you need for a work. Laser plumb down helps to detect the dot on the floor.

Automatic self-leveling. Automatic self-leveling when deblocking of pendulum. Locking switch has intermediate position. The pendulum is locked in the intermediate position. But it is possible to switch on laser lines. However laser lines will be projected with desired inclination. Such function is useful, e.g., when setting stairs.

Receiver mode. There is a receiver mode for outdoor operation under bright light. The range of the marking increases from 20 to 70m.

Setting on the tripod. It is possible to place ADA ULTRALiner 360 4V Set on the tripod or attach to the wall mount due to the thread 5/8".

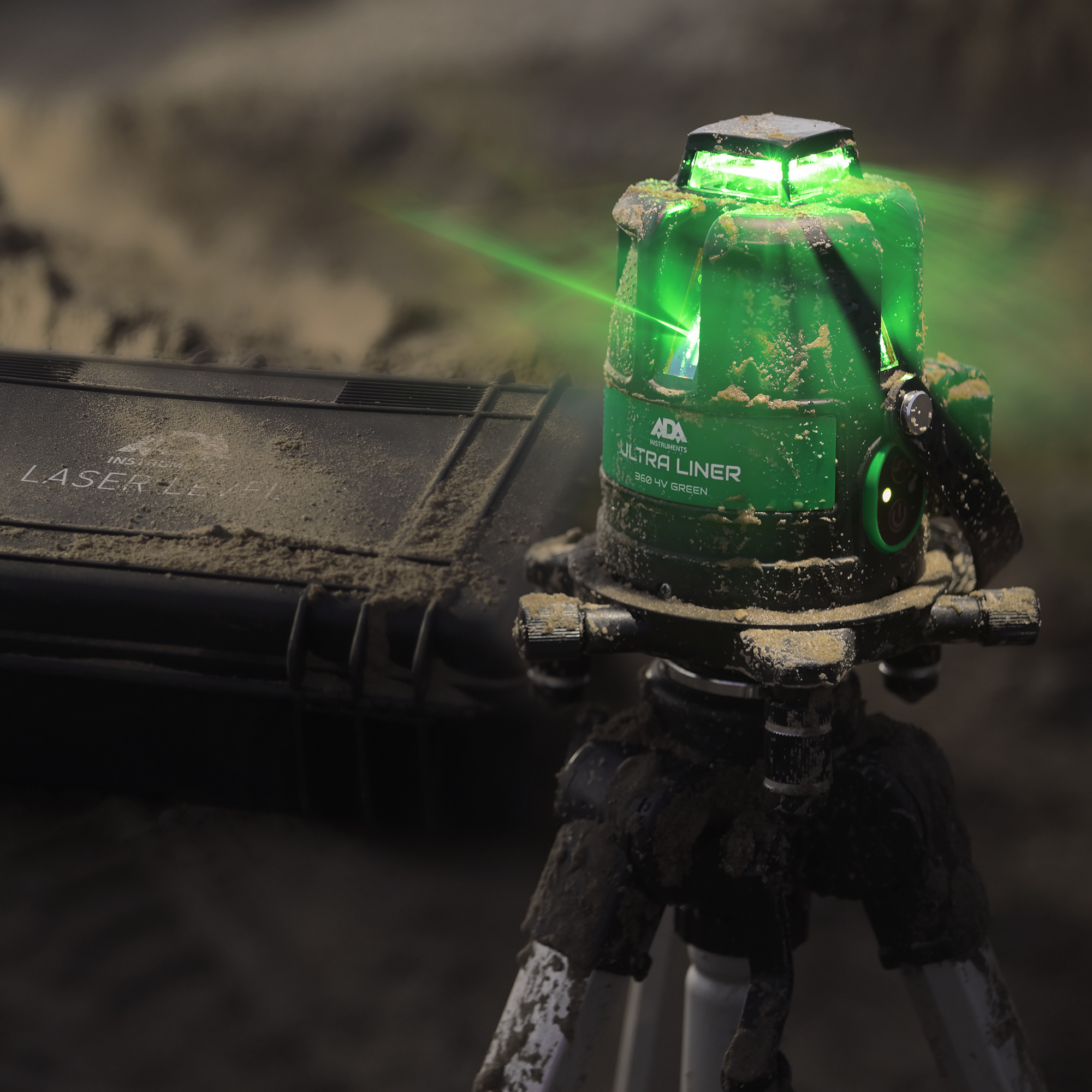

Shockproof housing. The whole housing of . ADA ULTRALiner 360 4V Set is protected from all sides. Rubber parts protect the instrument against damages during falls and hits.


Laser projection 1H (360°) 4V 1D
Working range 40 m / 70 m (with receiver)
Accuracy ± 0,2 mm/m
Self-leveling range ± 3°
Laser diode class 2, 520 nm, < 1 mWt
Dust/water protection IP 54
Operating temperature -10...+45° C
Power supply 4 batteries АА / 1.5 V( Li-ion accu)
Tripod thread 5/8"

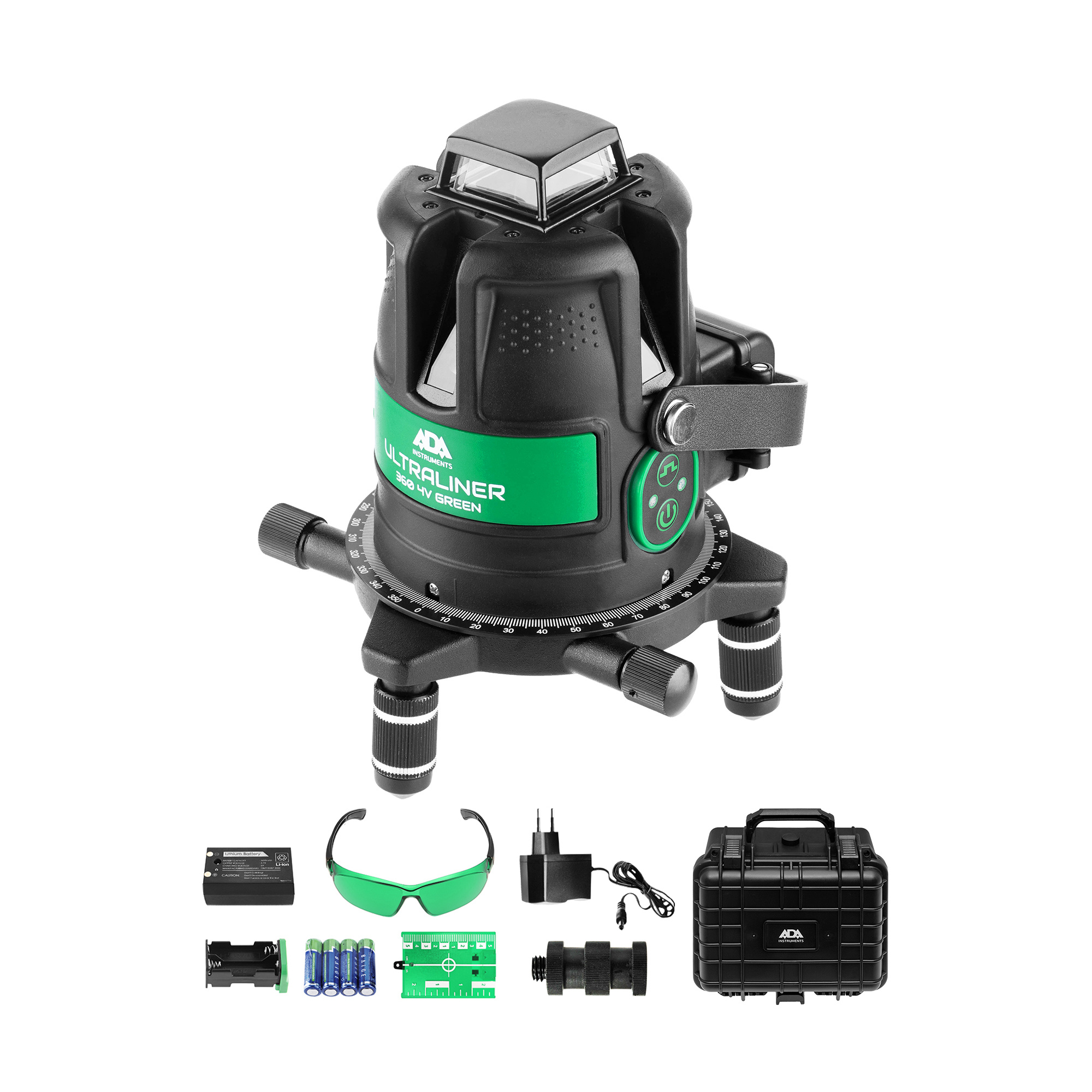

  • Line laser
  • Li-ion accu
  • Batteries
  • Battery holder
  • Charger
  • Screw-extender
  • Laser glasses
  • Laser target
  • Case
