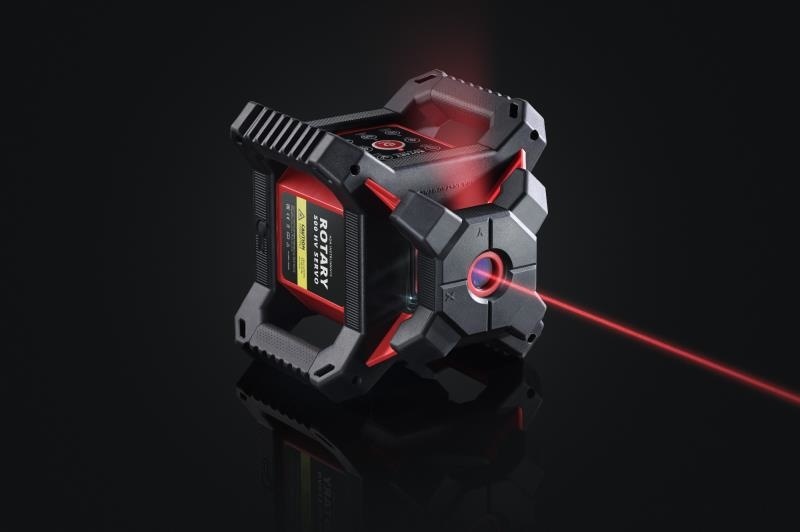

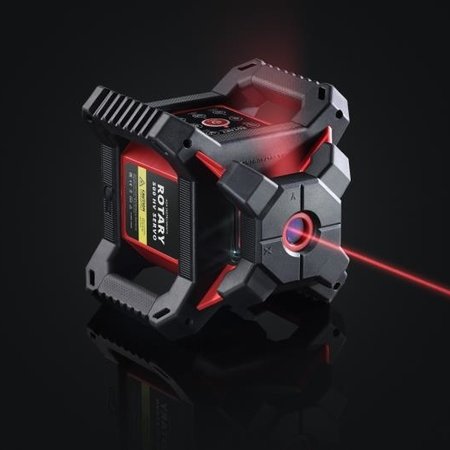

ADA  Rotary 500HV Red rotation laser with a working range of 500 metres
Rotary 500HV Red rotation laser with a working range of 500 metres 749,-

Rotary 500HV Red rotation laser with a working range of 500 metres

€749,00
In stock
Article number: A00578
EAN: 4627151051024
  • 2 years Warranty
  • Working days orderd before 17:00 hours same day send
  • Whatsapp your questions to +31-655117271
  • send a email to [email protected]
Information

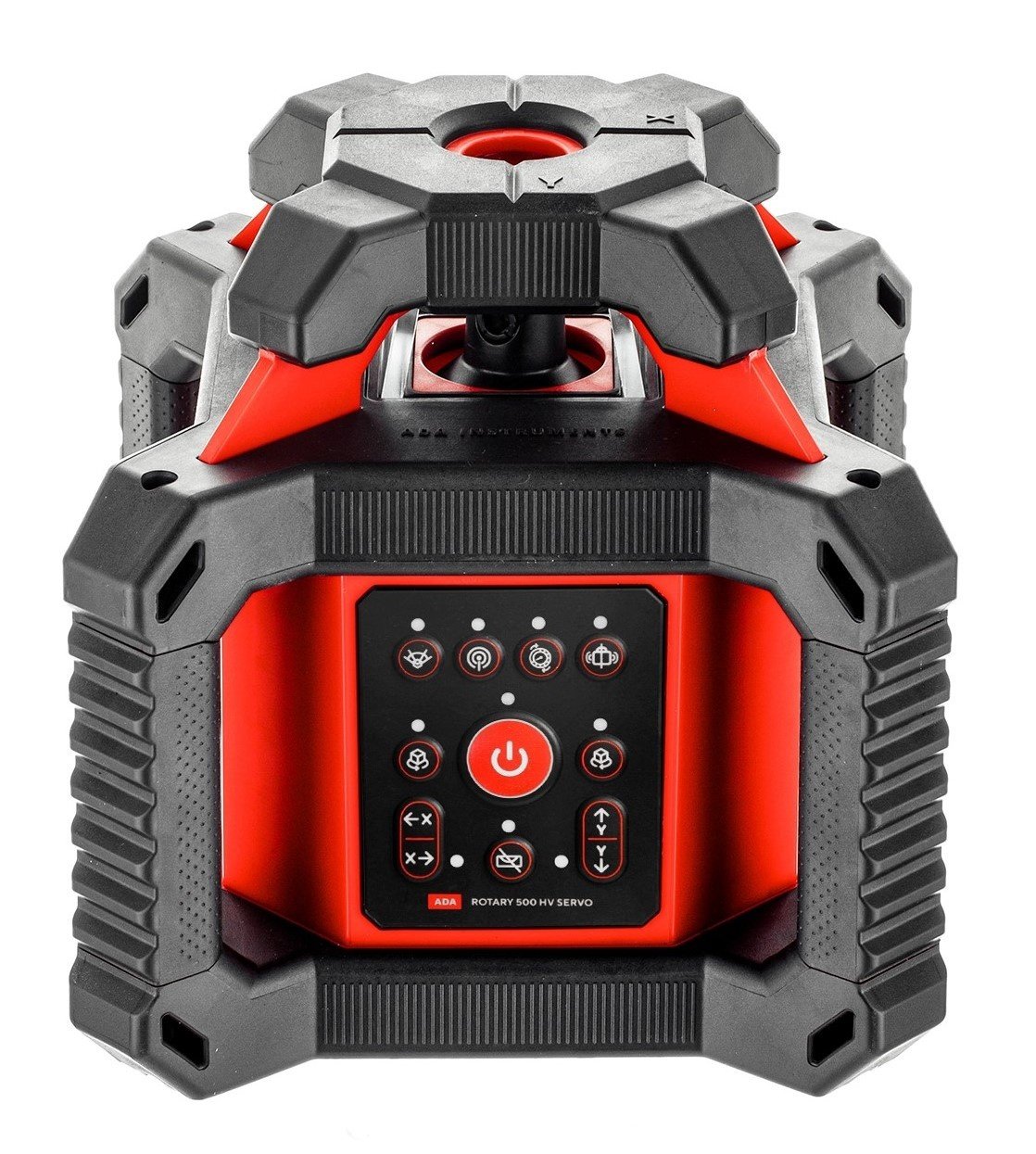

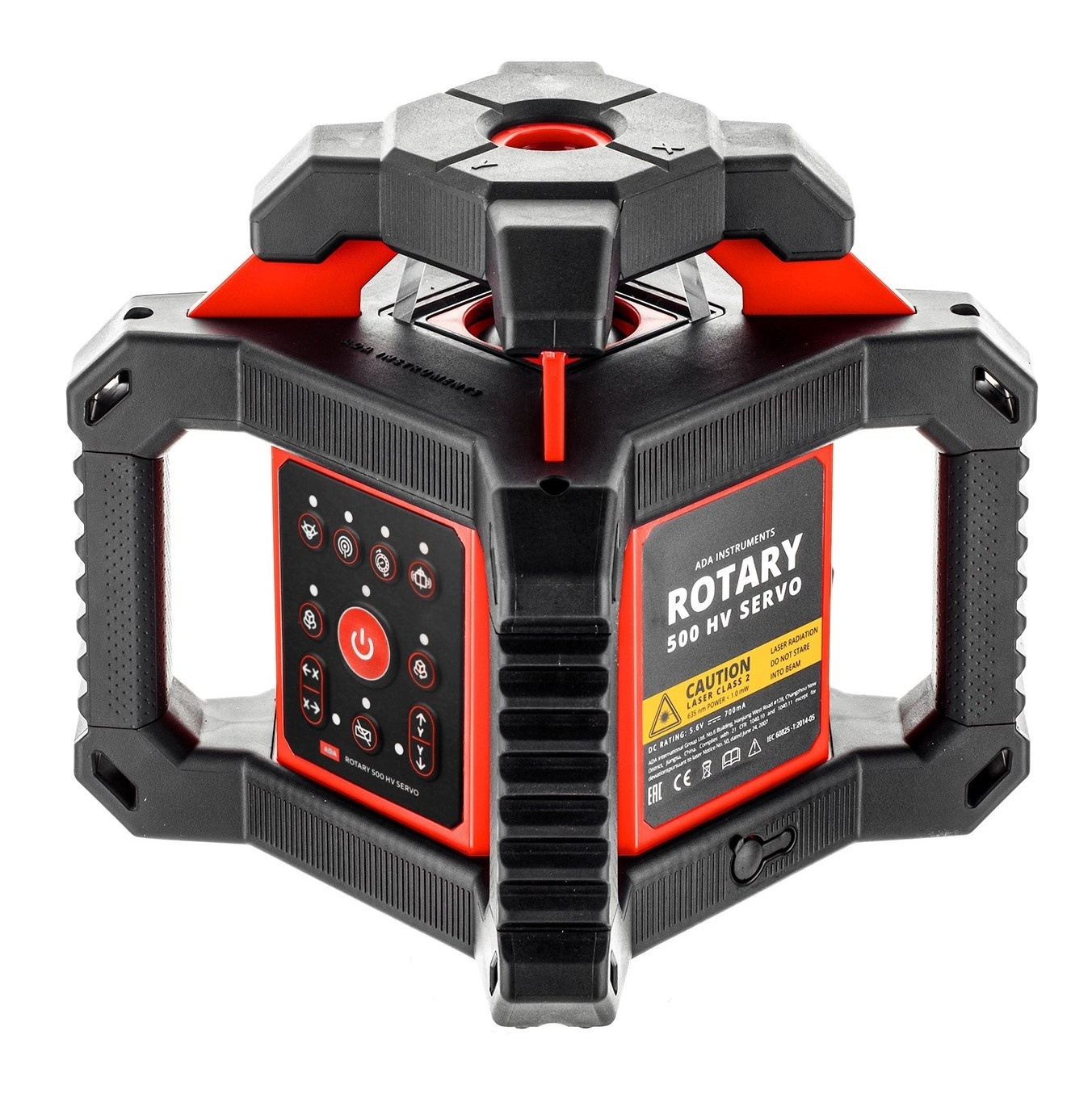

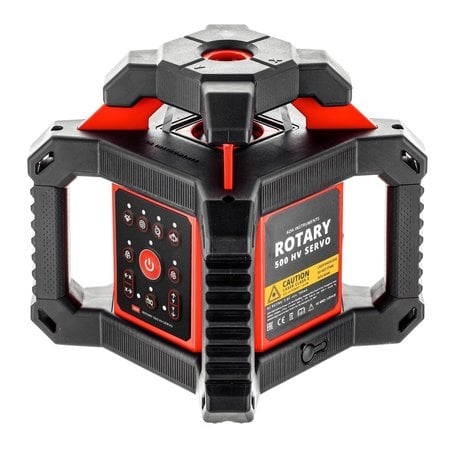

ADA Rotary 500HV construction laser



Laser Level ADA ROTARY 500 HV Servo is a rotary construction level with electronic compensator on servo drives. The servodrives provide the accuracy of ±0.1 mm/m and the slope adjustment range of up to ±5°.

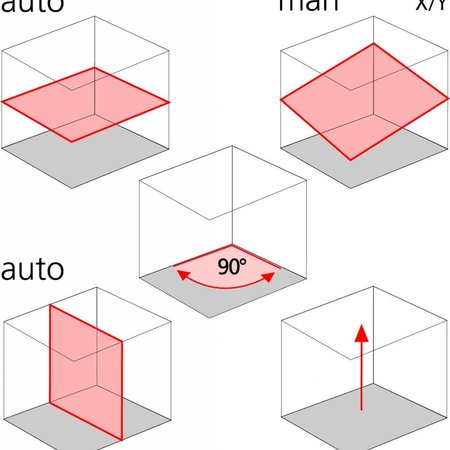

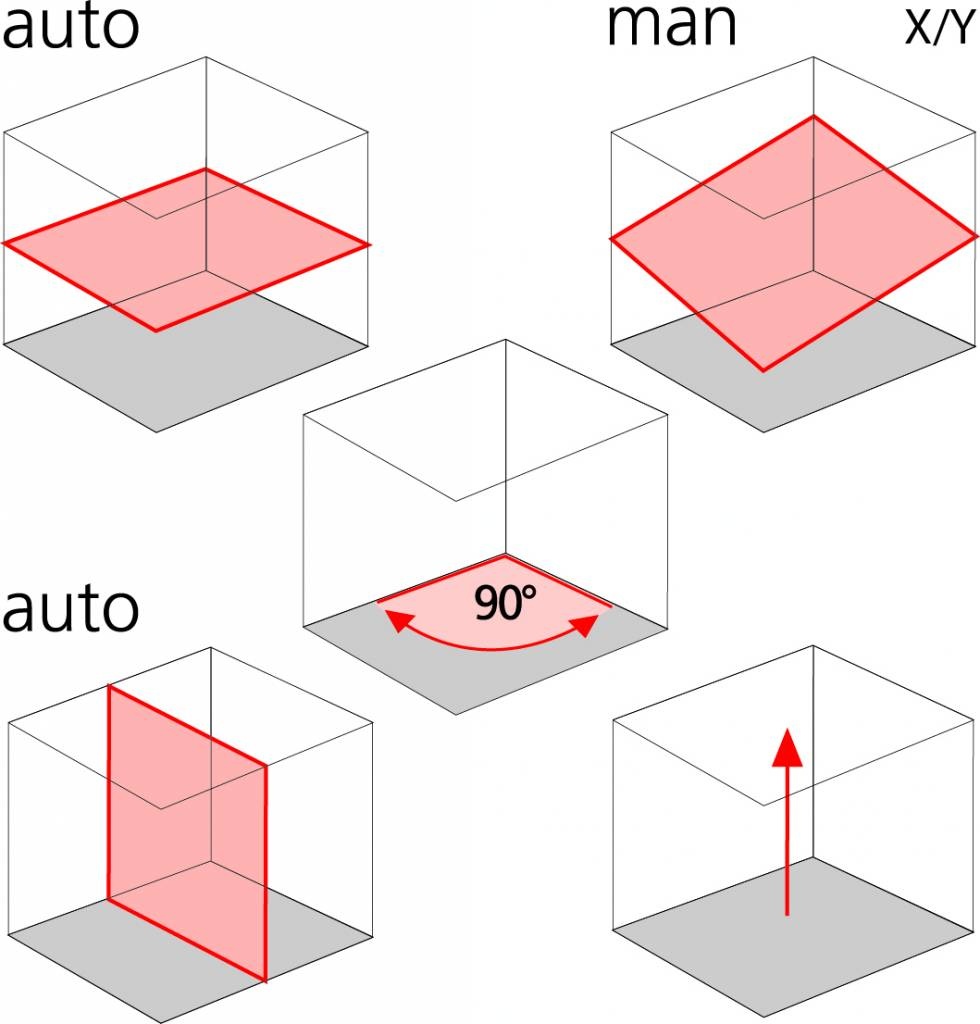

Self-levelling. The levelling in vertical or horizontal plane is performed automatically with the help of the servodrives due to the sensors of slope. In case of unhorizontalising of the instrument due to incidental push, the instrument stops operating, performs the levelling with the help of the servodrives, and continues operating afterwards.

Manual selection of the slope angle. The instrument’s slope angle adjustment function in the Х and Y angles within the range of 5° makes it possible to plan the level of the slopes in horizontal plane in all directions.

Selection of the speed of rotation of the laser. The speed of rotation of the laser’s emitter is adjustable from 0 to 600 rpm. The higher the speed is, the more frequently the laser dot goes through the rod or receiver at a long distance from the laser level. In case of operating without a receiver, it is more convenient to use low speed.

Scan mode is intended for operation in a certain sector. The sector is variable from a dot up to 180°. It is necessary in case the beam is required at a certain place only or in case of simultaneous operation of several instruments on the site. The laser beam can be moved to a specified dot by the means of the remote control panel.

Mode of operation with receiver. To work at long distances, a laser beam receiver included in the scope of delivery should be used. Attaching the receiver to the rod makes it possible to perform the measurements on a territory with the diameter of up to 500 metres.

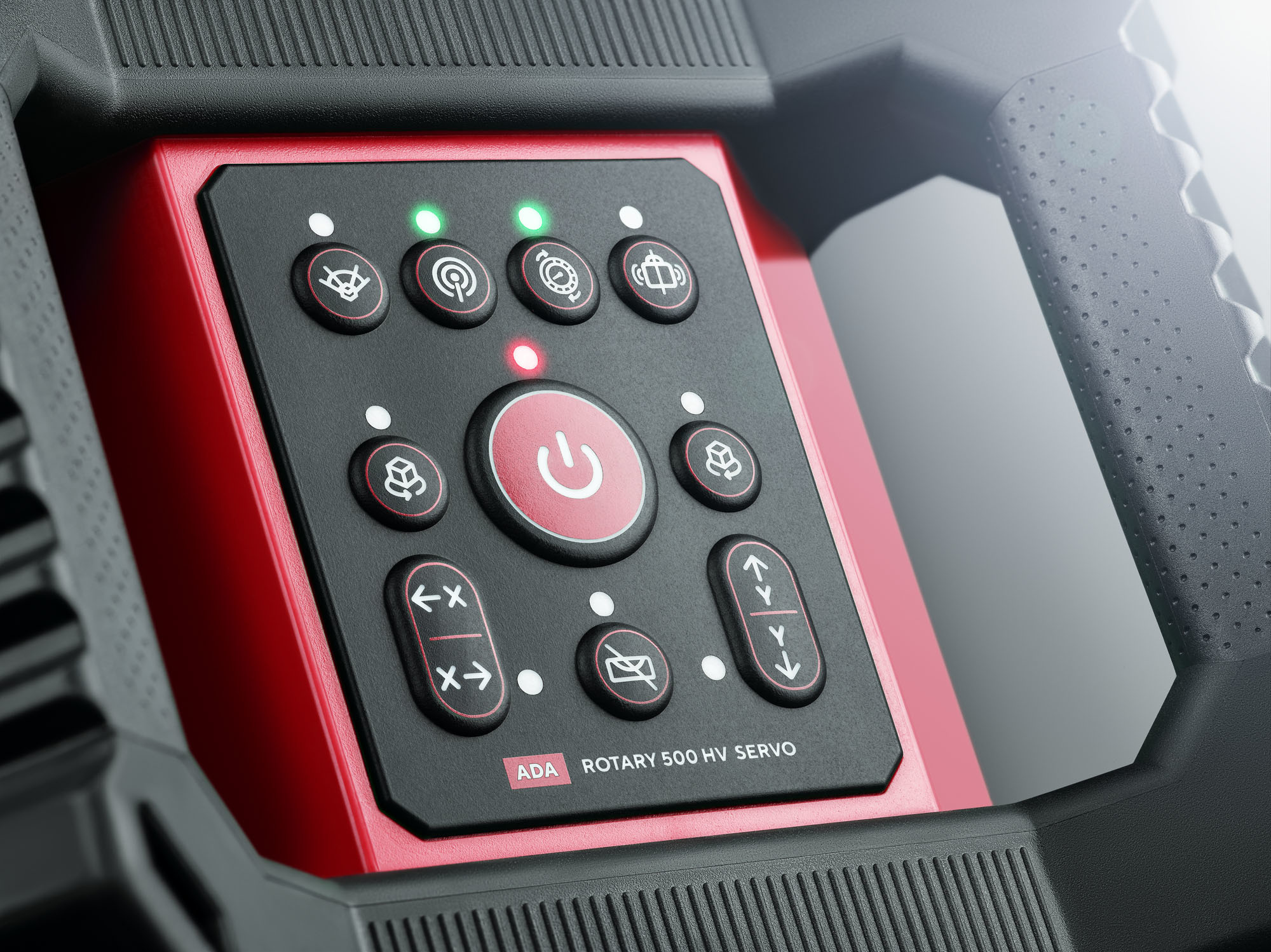

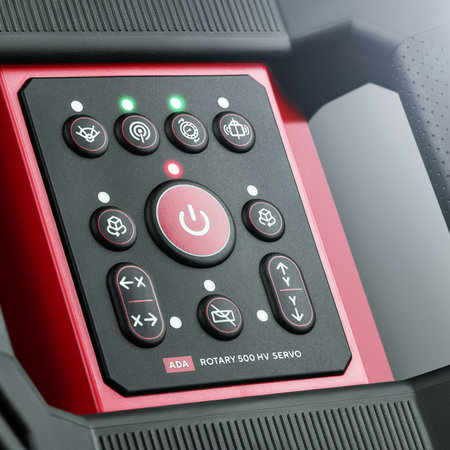

Remote control panel. It is convenient to use remote control panel within the range of up to 100 metres. It is unnecessary to come up to the laser level to change operating modes.

Universal mount 5/8" will make it possible to place ADA ROTARY 500 HV Servo on a vertical surface (wall) or install it onto a tripod for vertical marking.

ADA ROTARY 500 HV Servo will be perfectly suitable for both horizontal and vertical marking in private construction and during finishing works; for installing the utility lines, floors and walls marking, installation of celling and ventilation systems, when performing land planning, marking curvilinear surfaces, carrying out finishing works, furnishing of entrances and exits under slope and so on.

  NL-DE-EN



Specifications:

Working range with receiver (diameter) 500 m
Accuracy ± 0,1 mm/m
Projection of laser 1 line 360°
Leveling modes Horizontal automatic Vertical automatic
Thread 5/8″
Laser class 2
Laser diode 635 nm, < 1 mWt

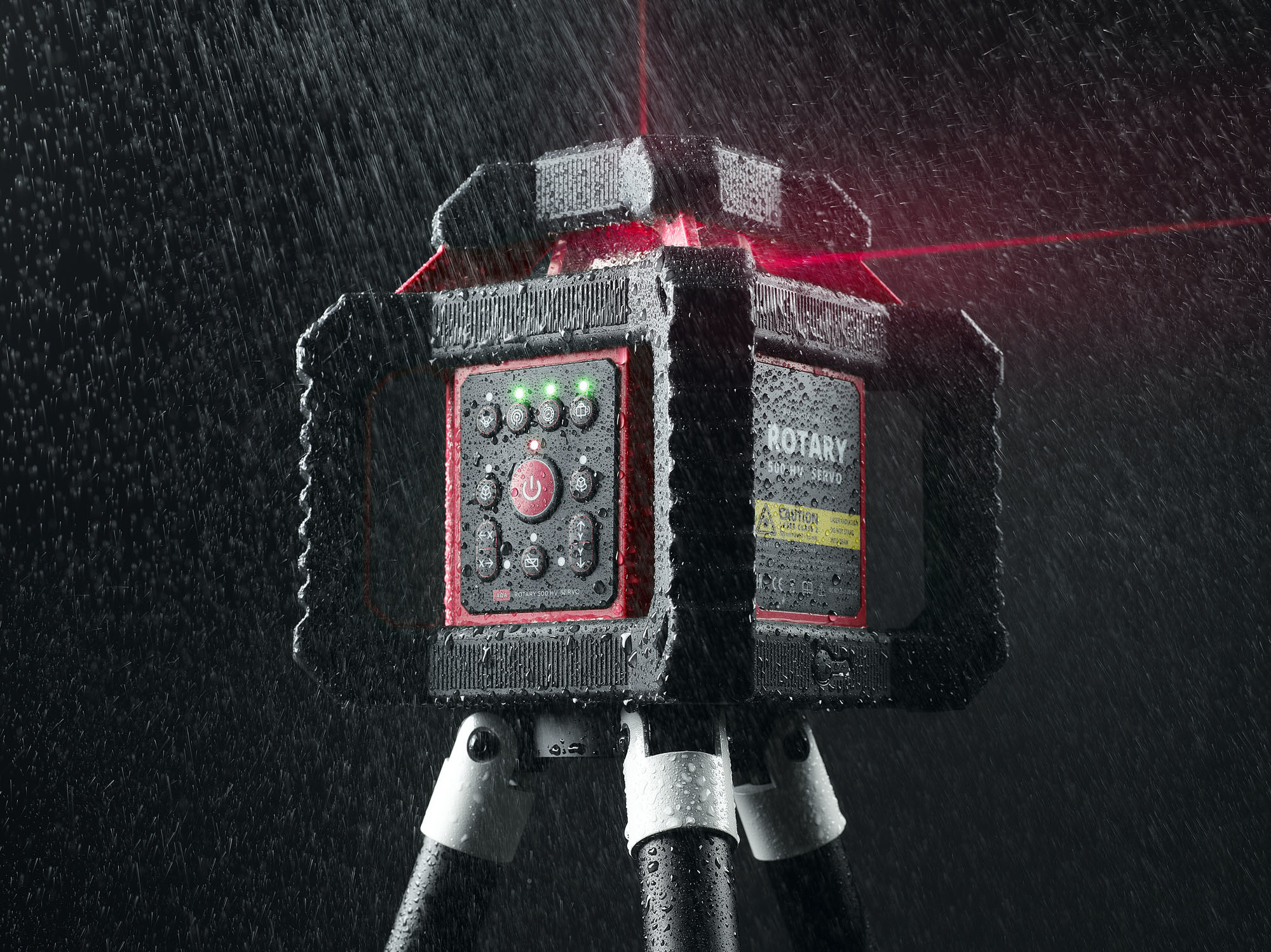

Dust water protection IP 65
Power supply 4 rechargeable batteries type AA / 1.2 V
Dimensions 200×200×200 mm
Weight 2,4 kg

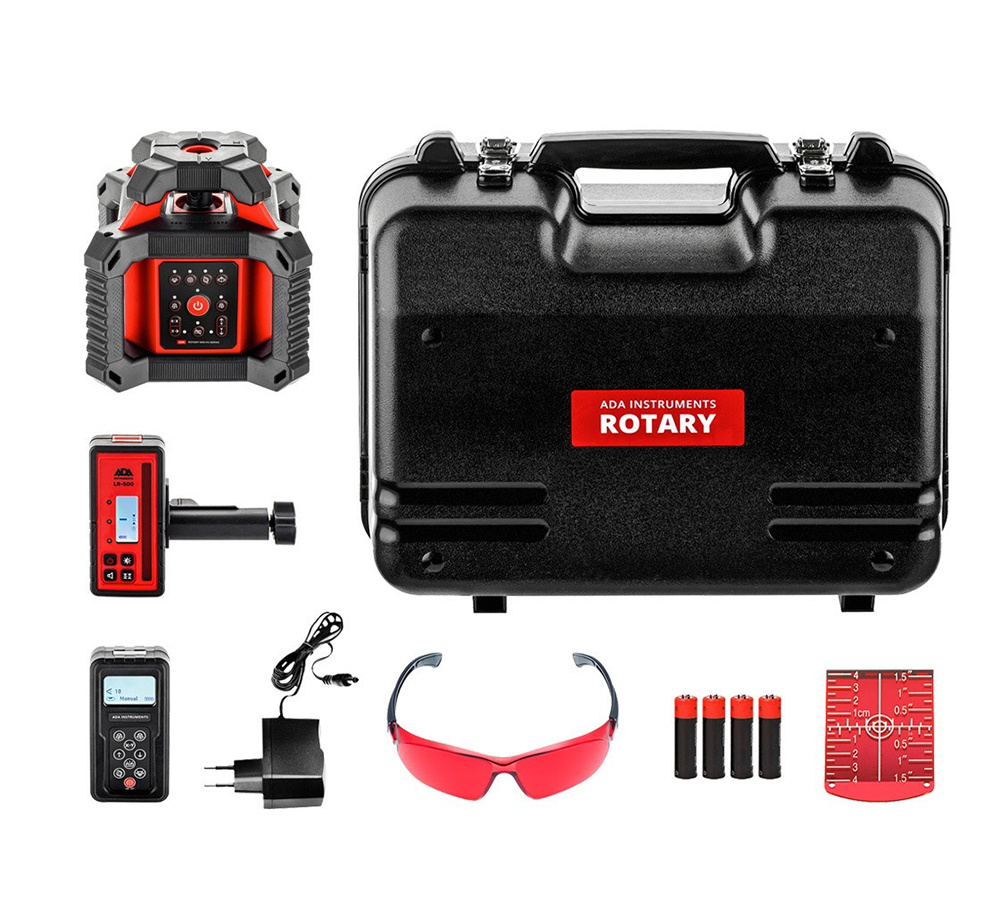

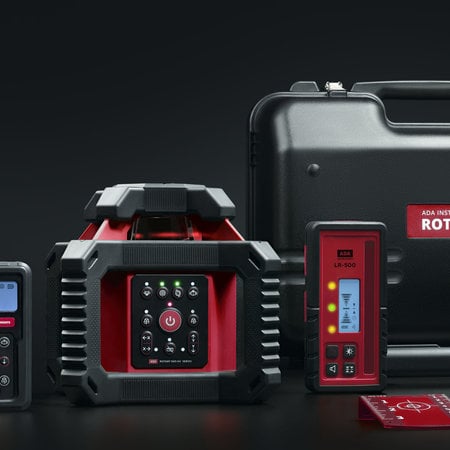

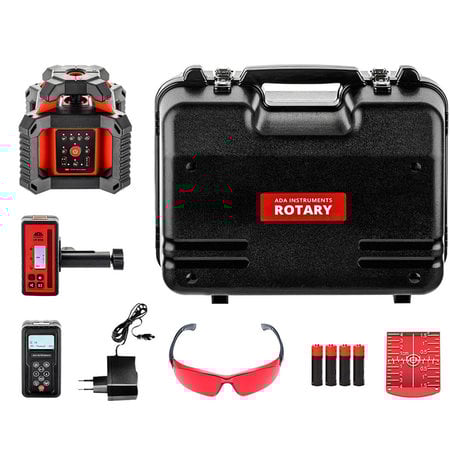

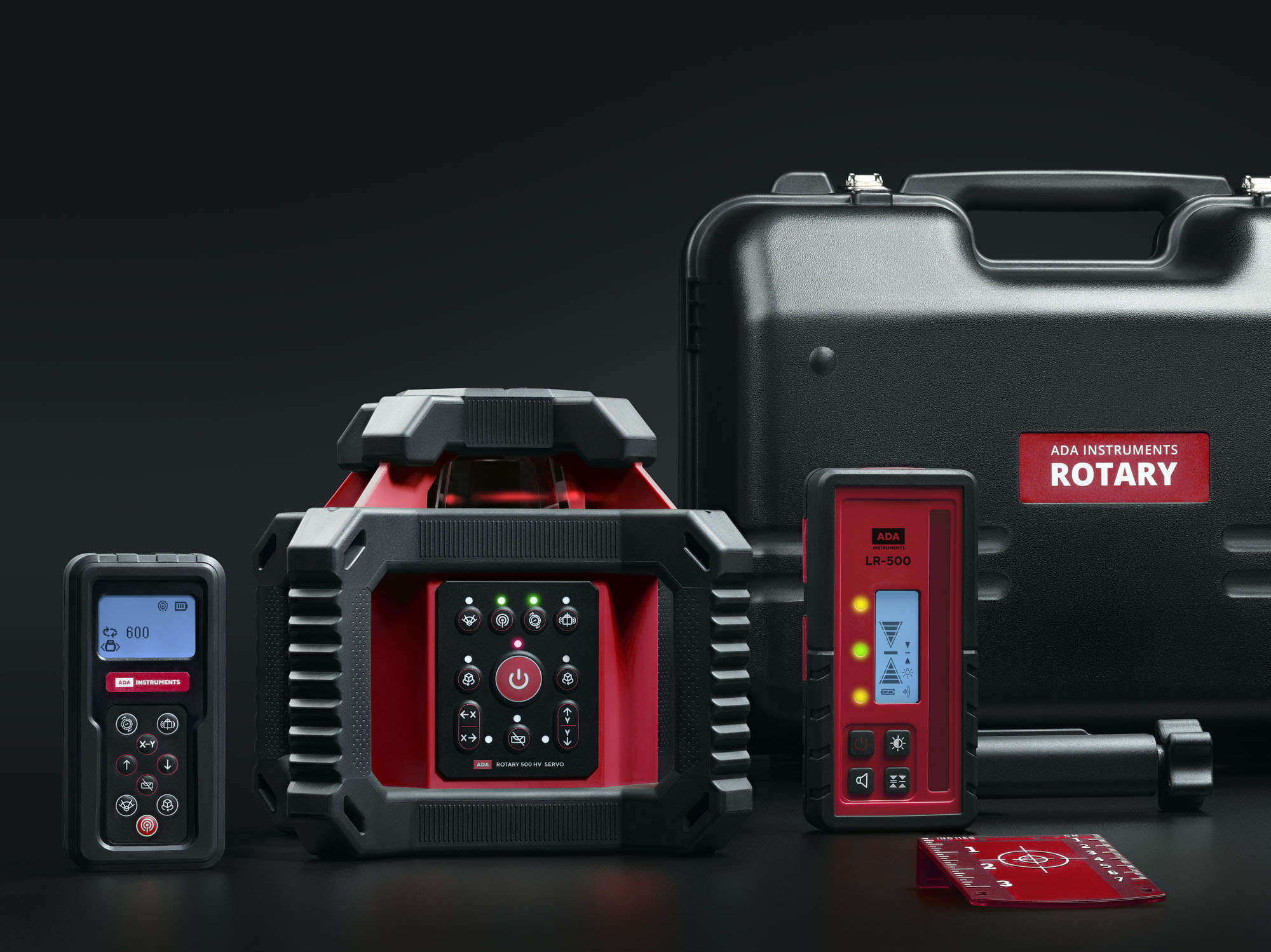

Includes:

  • Rotating laser Rotary 500 HV
  • Receiver
  • Mount of receiver
  • Remout control
  • Laser target
  • Laser glasses
  • Rechargeable batteries
  • Charger

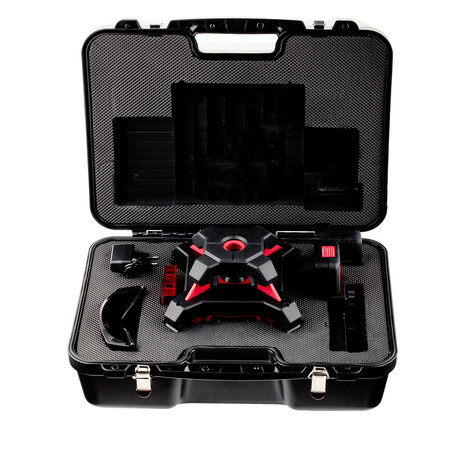

  • Plastic case
  • Operating manual
